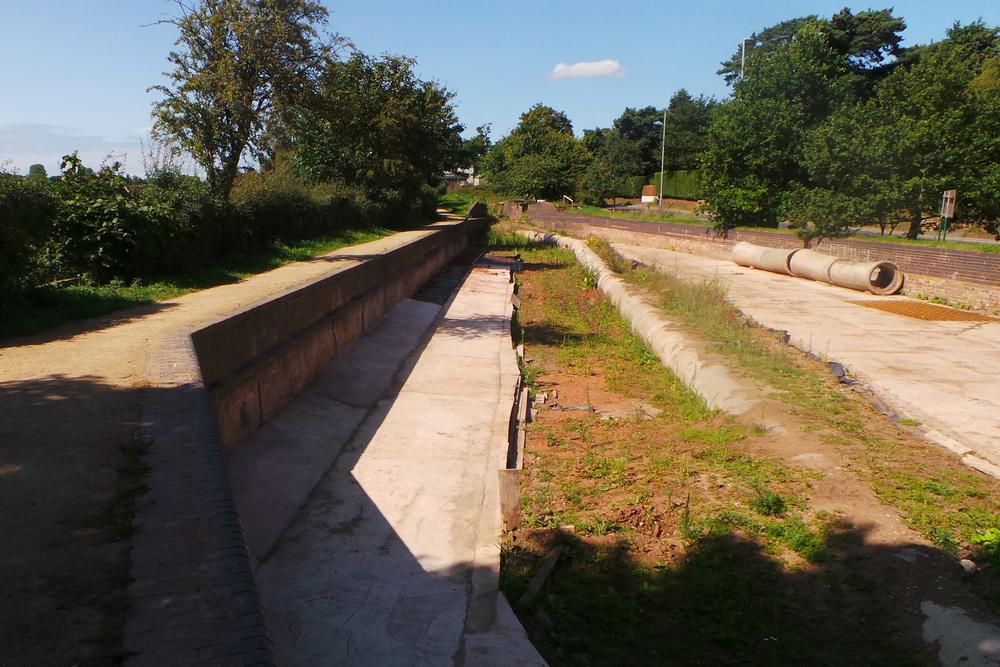

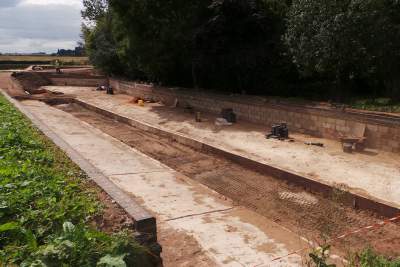

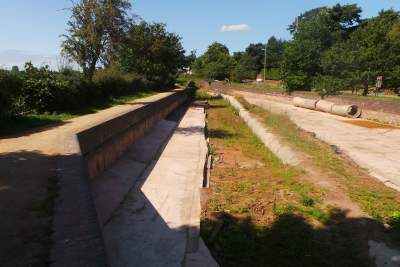

Following on from my July Work Party Blog, the work down between the A51 and the
narrows of pound 27 has progressed steadily. All the concreting of the canal base has

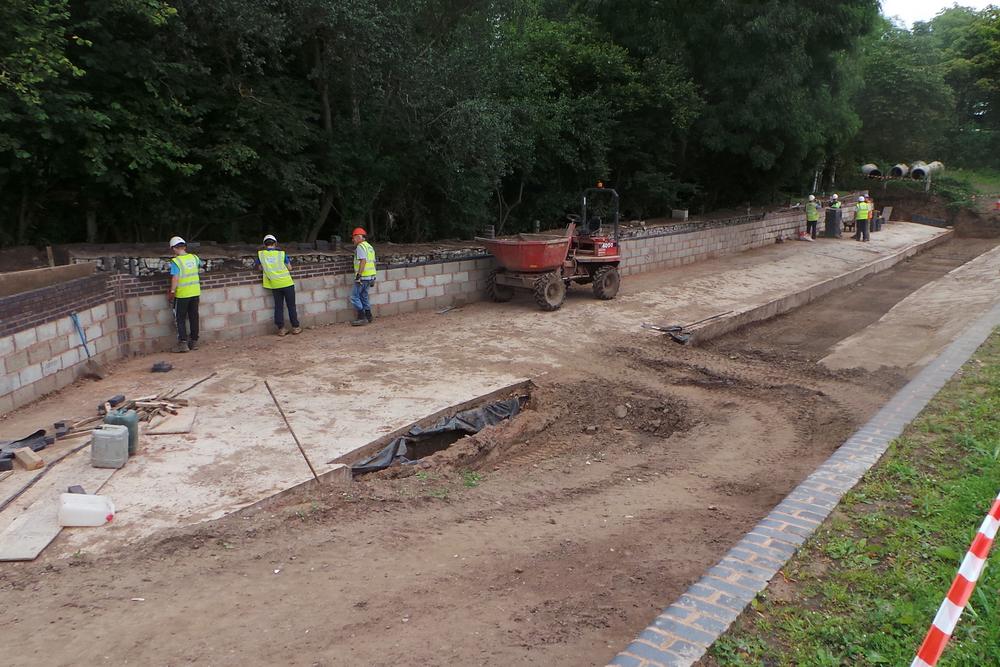

been completed. The only concreting left to be done down there is the back filling
between the wall, as it is being built, and the original gabions. And, of course we are in
the hands of the 'brickies' as to it's progress. Even so, as I write this, I can report that
the wall is almost complete save the top two courses where bull-nosed bricks will be
used to finish off the job.

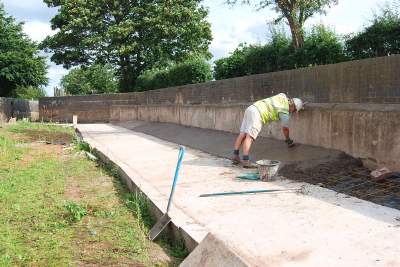

The gap between the canal's concrete base on the tow-path side and that on the other side has been excavated to about half a meter in depth. Into this trench some puddle clay has been laid. The puddle clay needs to be laid in three layers of about six inches with much compacting between each layer to establish a leak proof infill. To date only the first layer has been done from end to end. In fact we need just the right amount of rain to make this job easy. Too dry and the clay becomes rock hard and won't stick between he layers. Too much rain and we will find ourselves trying to work in a large puddle with clay sticking to just about everything. Puddle clay is also being used to seal off the A51 end of these works and hopefully with sufficient rainfall the whole area will eventually retain a good depth of water.
We have decided not to move the earth access ramp by the narrows to the other side of the pound as reported in last months blog, so much work for so little gain. Digging the last few barrow loads of earth out of the narrows might be a problem, we'll have to wait and see.

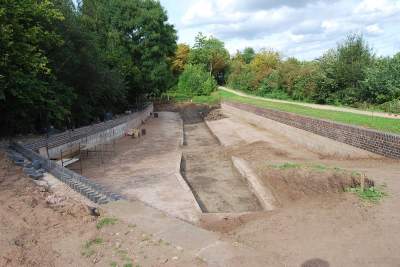

With work now drying up down at the narrows our attention is returning to pound 25. Here, not surprisingly, there is still a load of concreting of the base to be done, however, what is holding us up is the ' #### big pipe' yet again. And we have yet to get permission to remove it. It is again holding every thing up. 'Ha well what's new'!
You will have noticed the black plastic dams across the pound 27 in two places. We have a water loss situation here and the dams are a way of isolating sections of the canal to help us investigate where the water is escaping from. At the same time desperately trying to comply with the E.A dictate on the onward flow of water through our works into the brook beyond the A38.
In next months blog I hope to report on progress in Lock 25 and on progress of work in Lock 24. But with work envisaged at the Fossway Nature Reserve coming up, and work to be done at the Gallows Wharf, they could well impact on what we do next and where we do it.
Full 360 degree photo by Christine Howles
